Revit family for a bi-level drinking fountain, wall hung
Bi-level drinking fountain, wall hung, two bowls on one plate, a high and a low height

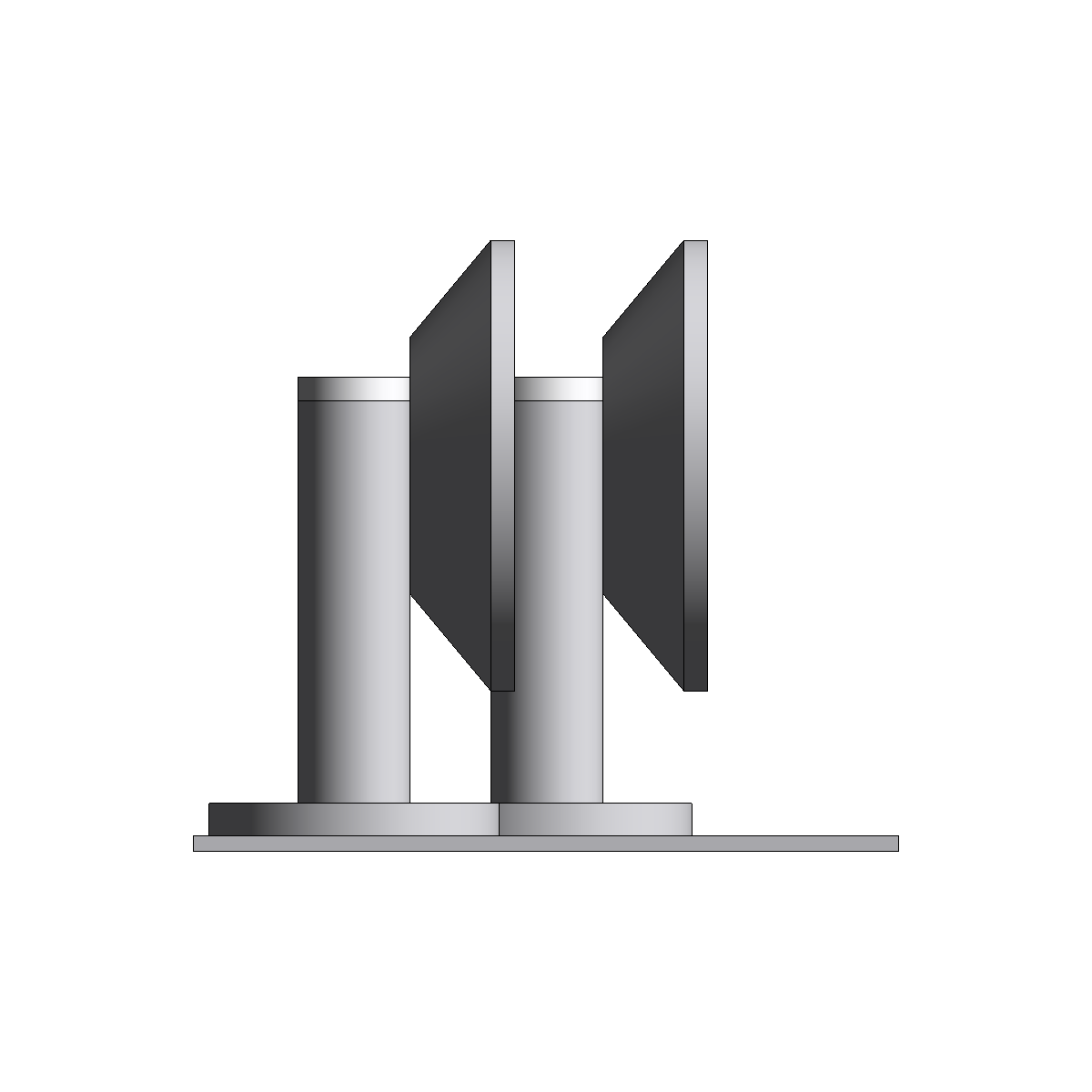

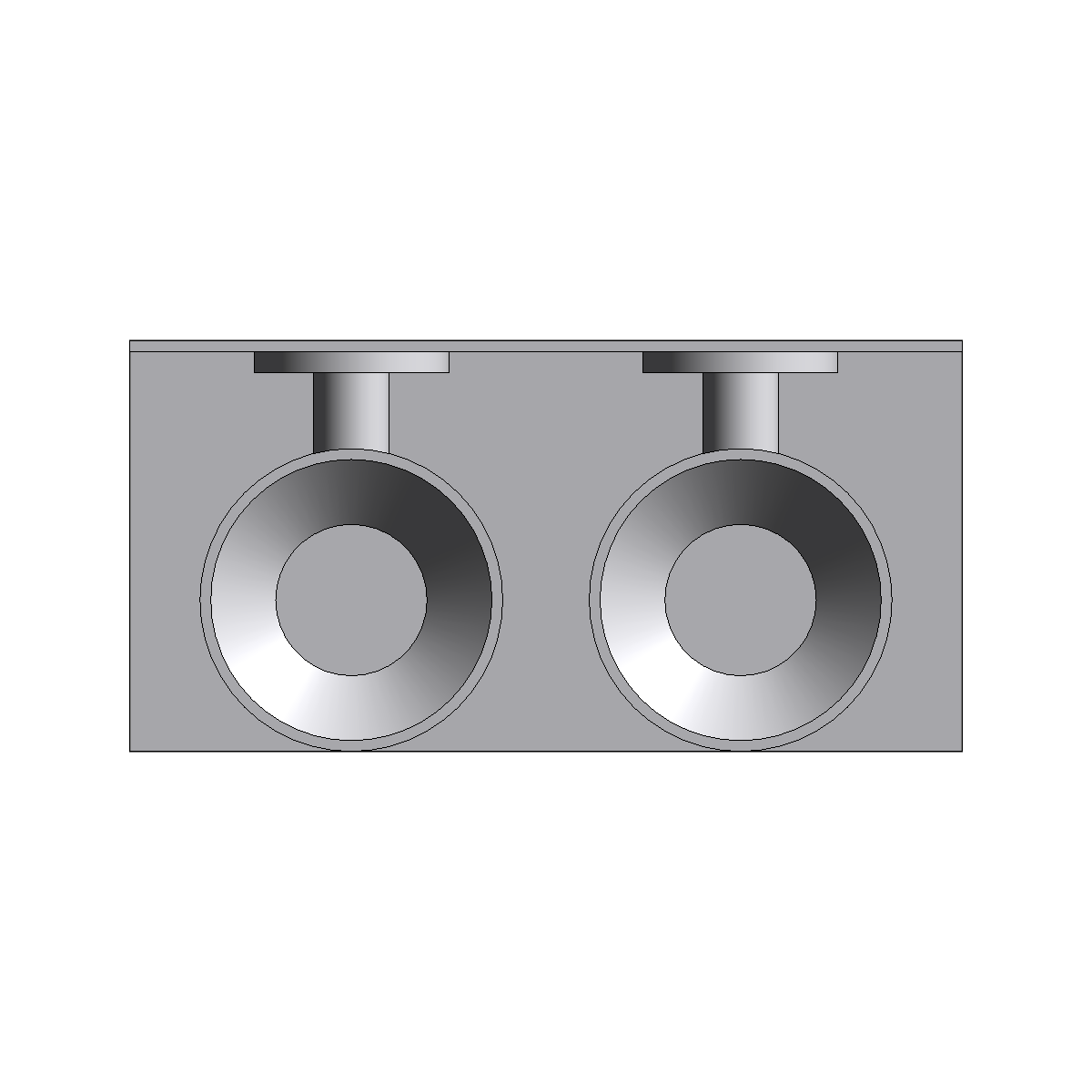

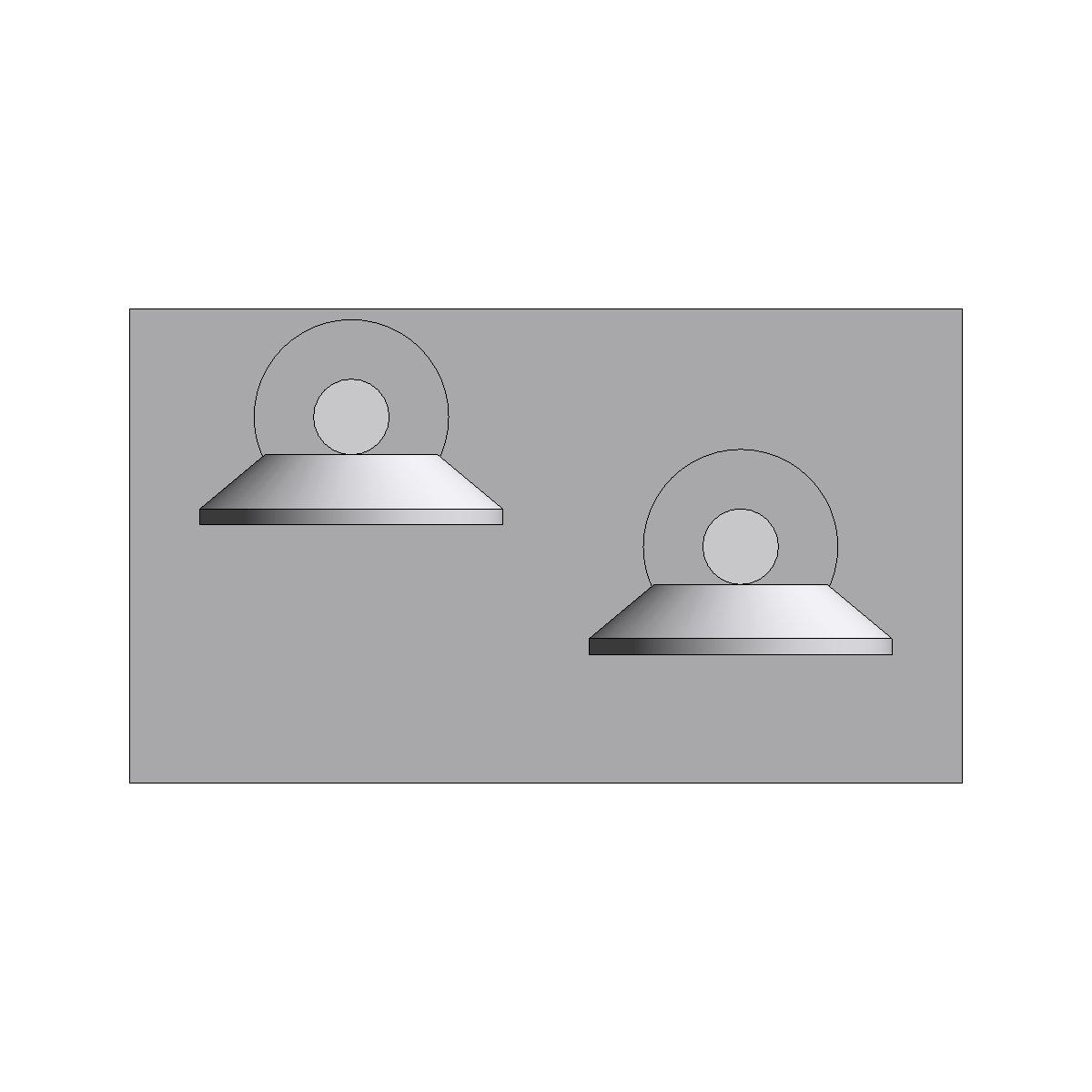

A sample family
A sample family from this generator. Planning grade: verify before construction documents. Free to use in your projects.
Opens in Revit 2024 and later.
| What you gave us | A spec sheet with a rough-in drawing and two photos |
|---|---|
| Levels offered | Standard, Detailed |
| What the family carries | Wall based at the rough-in height. Cold water and drain connectors from the rough-in, a bowl at each of the two heights, accessible-height clearances |
| Credits | 2 or 3 |
Connectors and types are only built from what the sheet says. If the electrical table or the rough-in is missing, we ask for it before the build rather than guess.
