Revit family for a mobile heating oven
Mobile heating oven, a heating oven on a rolling rack, on casters
A sample family

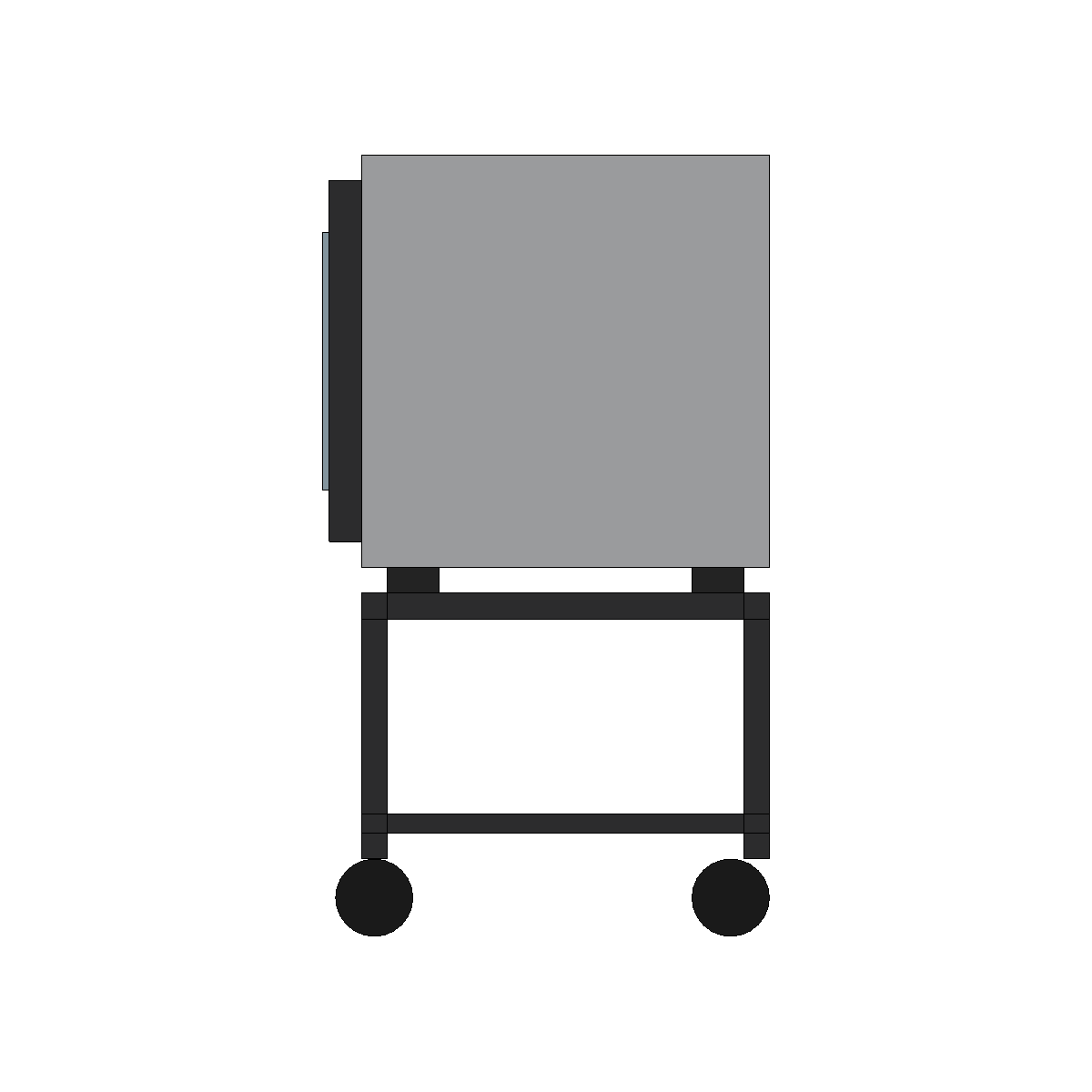

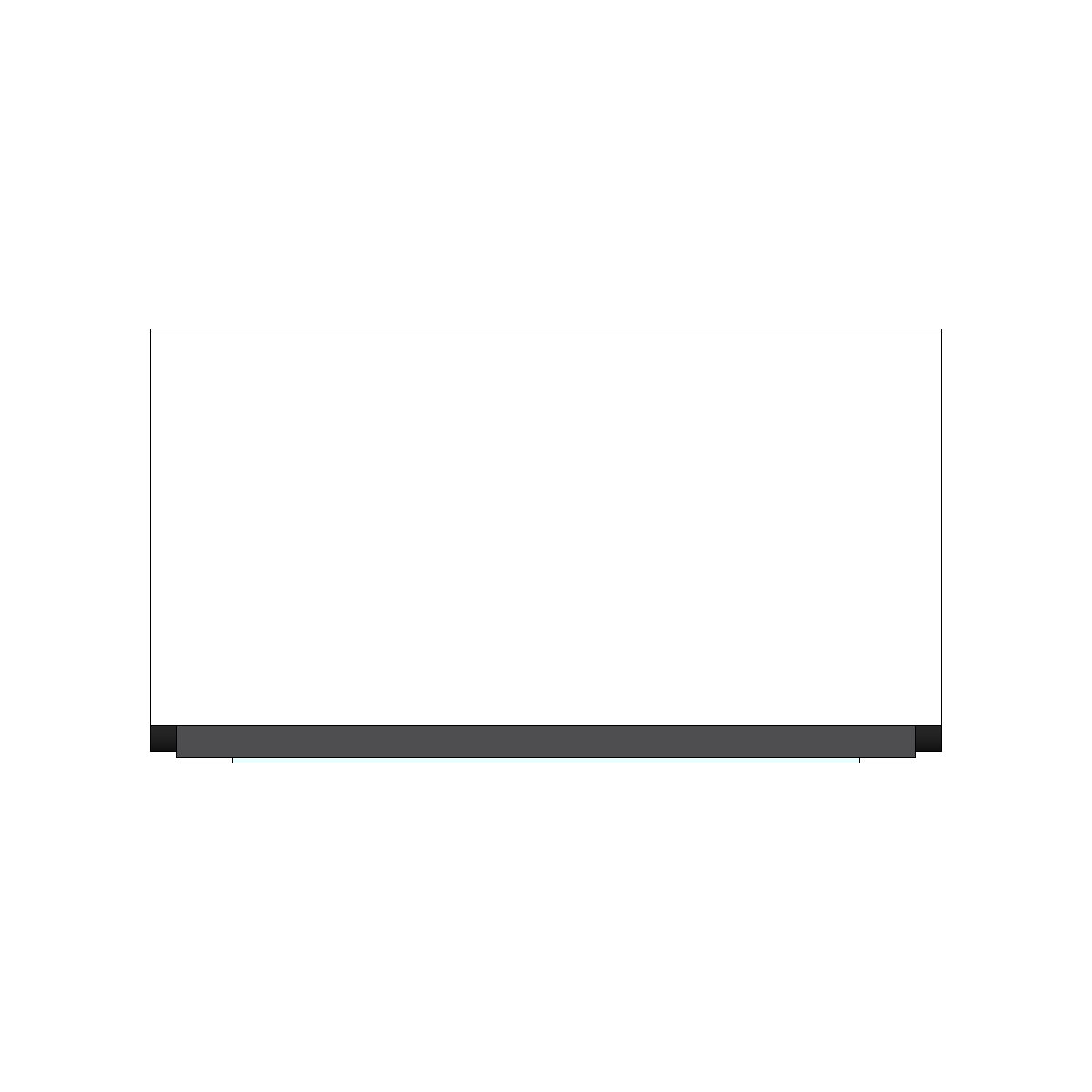

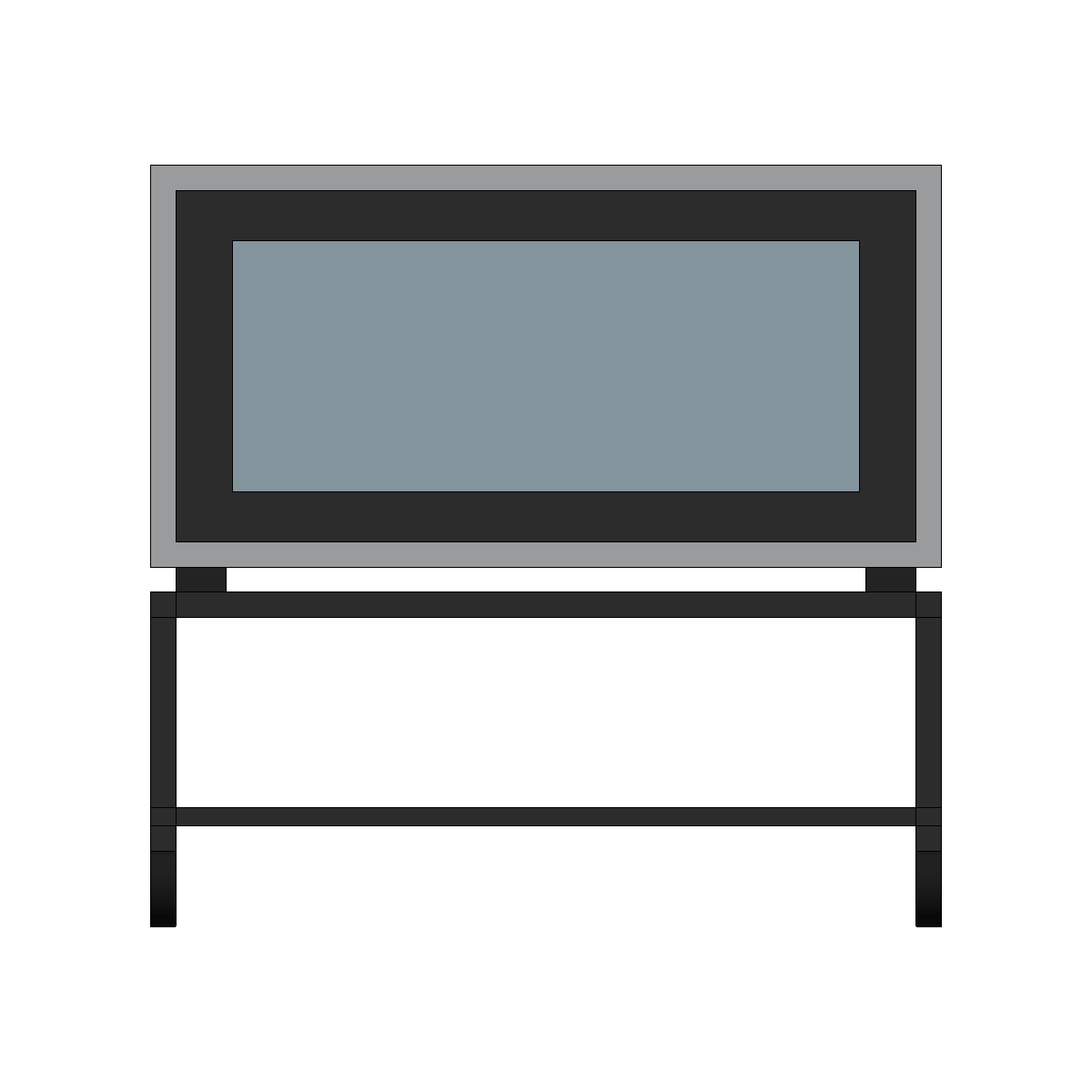

A sample family from this generator. Planning grade: verify before construction documents. Free to use in your projects.
Opens in Revit 2024 and later.
| What you gave us | A spec sheet with an electrical table and a dimensioned drawing, two photos |
|---|---|
| Levels offered | Standard, Detailed |
| What the family carries | Mobile on casters, with no host. Overall size and door swing clearance from the drawing, an electrical connector at the sheet's voltage and amps |
| Credits | 2 or 3 |
Connectors and types are only built from what the sheet says. If the electrical table or the rough-in is missing, we ask for it before the build rather than guess.
